Description

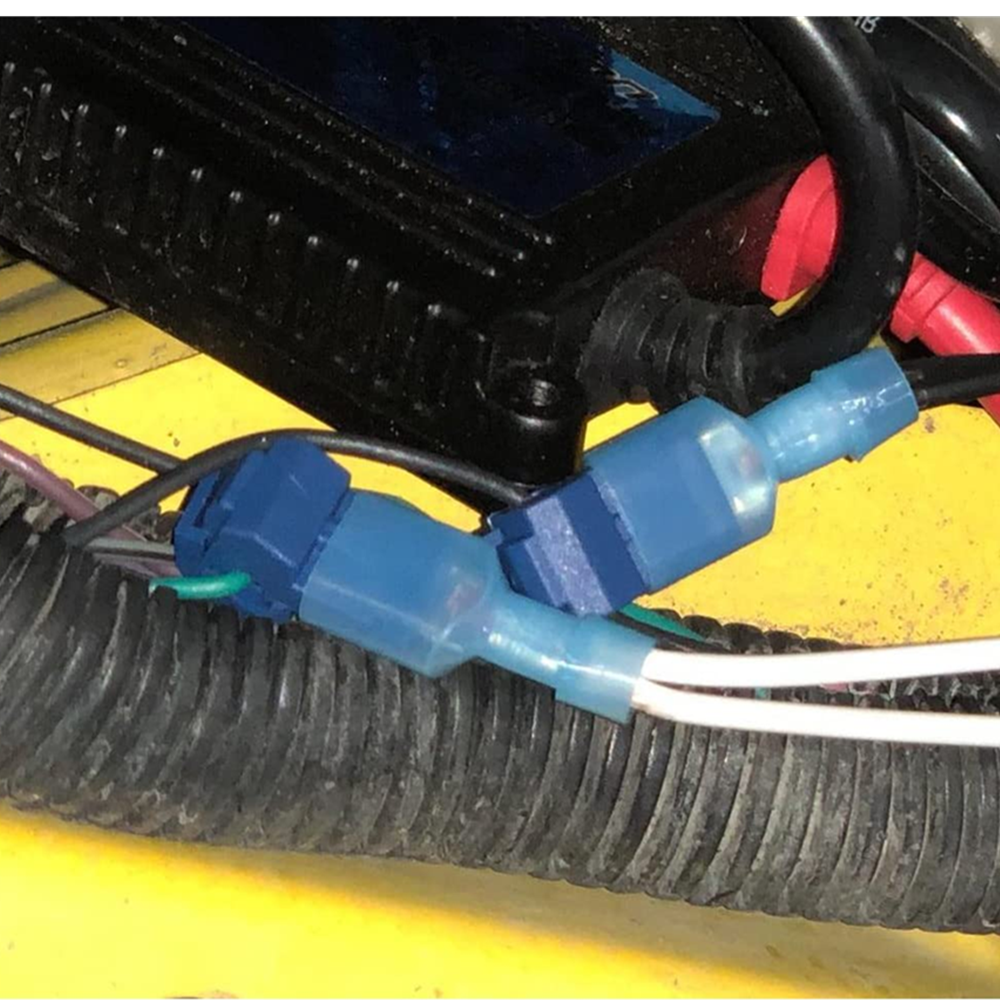

These Self-Stripping Electrical T-Tap Spade Connectors combo makes tapping into an existing wire quick, easy, and reliable.
The T-tap is a fully insulated female quick disconnect that can be spliced into a wire and then mated with the fully insulated male quick disconnect, all without stripping or twisting - no special tools needed.
The cores are made of true tinned copper for maximum conductivity and the strongest crimps.
Feature
Makes tapping into an existing wire a quick and easy job, no wire stripping needed, no special tools needed
Widely used in the wire connection of automotive and motorcycle, home
Comply with all relevant US standard, great for tapping into wires
Use these Self-Stripping Electrical Tap Connectors to electrically tap into a wire in mid-span without cutting or stripping the wire
Prevents the wire from shorting out efficiently
Specification
Material: Copper + Nylon
Blue:
Quick Splice Wire Connector:
AWG:18-14
Wire Cross Section Area:1.5-2.5mm2
Length:3.7cm/1.46"
Female Spade Connector:
Length:2.4cm/0.94"
Max Current = 15
Yellow:
Quick Splice Wire Connector:
AWG:14-12
Wire Cross Section Area:2.5-4.0mm2
Quick Splice Wire Connector Size: 18*9.7*10.7mm/0.98 x 0.71 x 0.31in
Male Spade Connector Size: 25*12*8mm/0.71 x 0.36 x 0.42in
Max Current = 24A
Red:
Quick Splice Wire Connector
AWG:22-18AWG
Wire Cross Section Area:0.5-1.5mm2
Female Spade Connector:
Length: 2.5 cm/0.98"
Max Current = 10
