Description
Patient Range: Adult and Pediatrics
* SpO2 :
Measurement range: 70% - 100%
Resolution: ±1%
Measurement accuracy: 80% - 99%: ±2% | 70% - 79%: ±3% | â‰?9%: No definition
* Pulse Rate:
Measurement range: 30 - 250bpm
Resolution: ±1bpm
Measurement accuracy: 30 - 99bpm: ±2bpm | 100 - 250bpm: ±2%

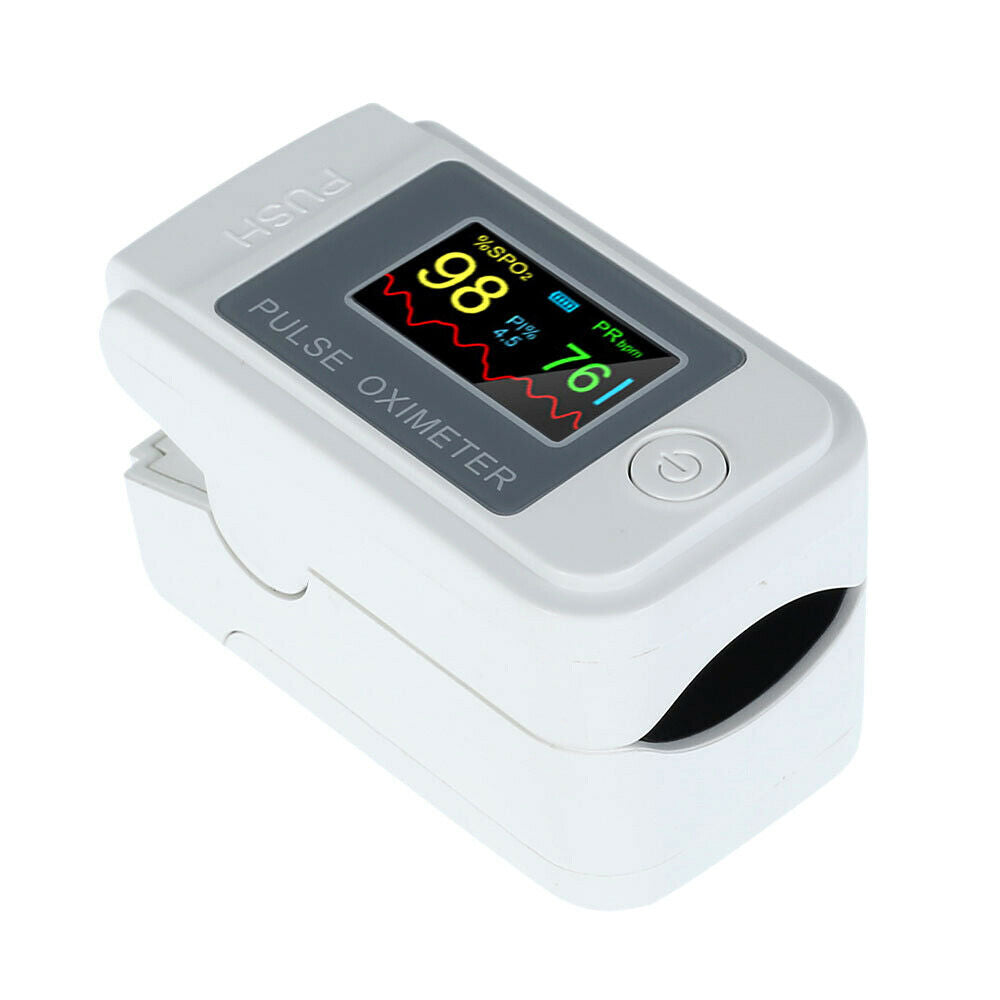

* Display:
Type: Digital OLED and LED Display
Parameters: SpO2, PR, Pulse bar, Waveform
Mode: 4 display orientations (Press power button for switch display direction)
* Alarm: Battery-low indicator
* Mechanical - Dimension: 60mm(L)x32mm(W)x30mm(H),Weight: 60g(No including batteries)

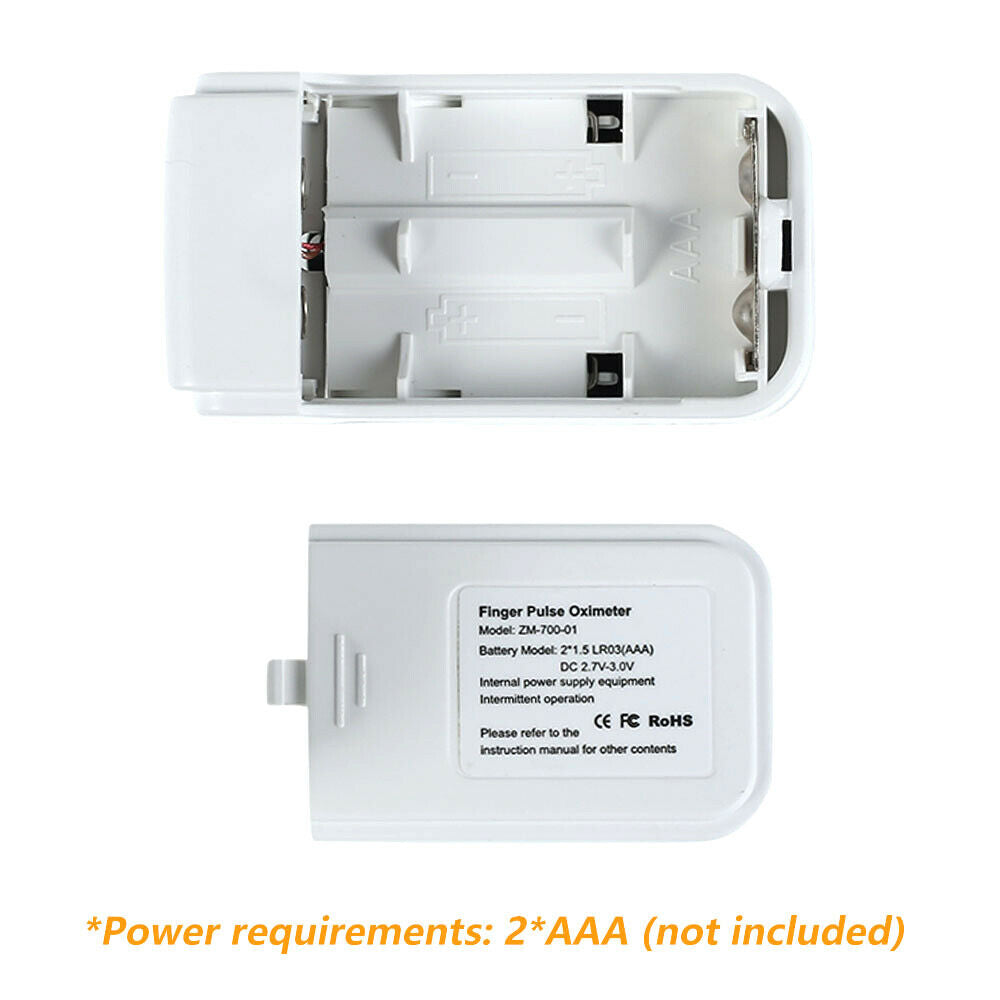

* Battery(No including) - Two AAA 1.5V, 600mAh alkaline batteries could be continuously operated as long as 24 hours.
* Environmental :
Operation Temperature: 5°C - 40°C
Storage Temperature: -20°C- 55°C
Operation Humidity: �0%, no condensation
Storage Humidity: �3%, no condensation
Atmosphere pressure: 86kPa - 106kPa
* Measurement Performance in Low Perfusion Condition :
Required the test equipment (BIO-TEK INDEX Pulse Oximeter tester) the pulse wave is available without failure when the simulation pulse wave amplitude is at 0.6%.
* Interference Resistance Capacity against Ambient Light :
Device works normally when mixed noise produced by BIO-TEK INDEX Pulse Oximeter tester.
1x Finger Pulse Oximeter
1x Manual
